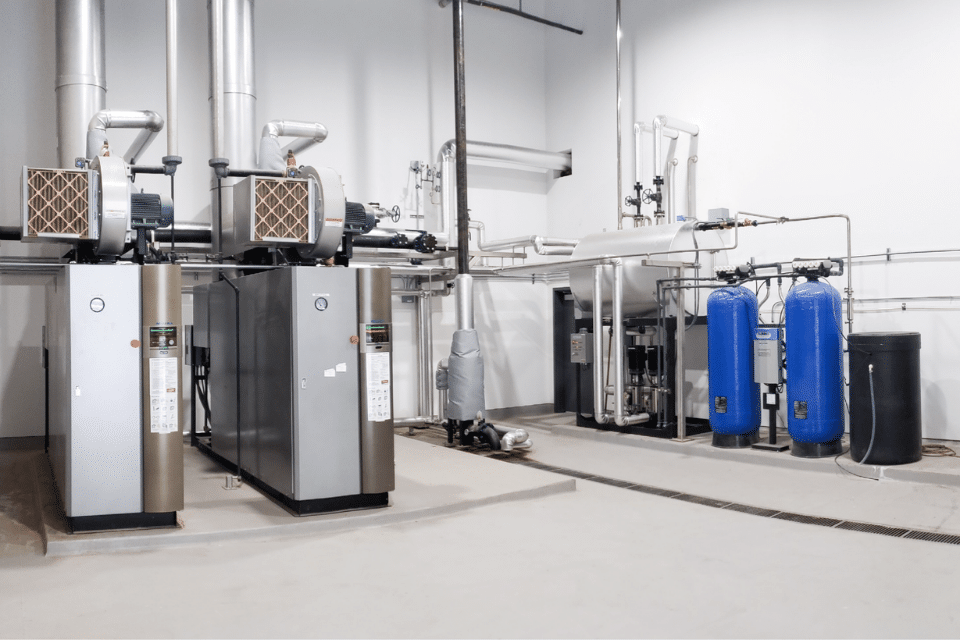

How to Correctly Size a Steam Boiler for Your Business

How to Correctly Size a Steam Boiler for Your Business

There are many things to consider when purchasing and installing a new boiler or replacement boiler for your business. You naturally want a steam boiler system that balances high efficiency with the ability to produce enough steam for the growing needs of your operation. You need to decide what type of fuel your boiler will run on (e.g., natural gas, heating oil, propane). And of course, steam boiler sizing is one of the biggest considerations, especially if you’re faced with limited physical space in your boiler room. Let’s explore the process of right-sizing a boiler system to your company’s needs.

Factors to Consider with Steam Boiler Sizing

Determining the right boiler sizing for your facility will depend largely on three important considerations: operational needs, load demand and available space. Let’s approach these one at a time.

Operational Needs

Every business has different needs when it comes to hot water and steam. Do you plan to use the steam system strictly as part of your manufacturing process, or will it serve multiple uses? Do you also plan to incorporate your boiler into your heating system and/or hot water heater? Is steam pressure a consideration? The answers to these questions will help you make a determination as to your overall required steam output and BTU needs — and by extension, your boiler sizing.

Load Demand

Another factor to take into account is whether you will need consistent steam output for long periods of time, or whether you’ll experience large fluctuations in load demand. For example, if you run a small craft brewery and you only plan to use your steam boiler in that process, you probably won’t need constant steam heat 24 hours a day — and in fact, your load demands may vary widely during the course of the day. In cases like these, a large steam boiler system might prove to be very cost ineffective, especially if your boiler requires several hours of warmup time. On top of the normal heat loss characteristic of so many larger boilers, you’ll also effectively be producing lots of steam heat you won’t use.

Available Space

Perhaps the most poignant concern, especially for smaller companies, is available space. Is your boiler room large enough to accommodate a steam system appropriate to your needs? If not, what can you do to conserve space? How can you ensure you have enough room in your plant for the safe installation of a boiler system that will produce the amount of heat you need to run?

Designing a Boiler System to Meet Your Steam Load Demand

While the physical limitations of your boiler room must be taken into account, you must also consider your facility’s minimum, average, and maximum steam demand to ensure you are selecting boiler unit(s) that are appropriately sized to meet your facility’s steam needs. If you are using conventional fire tube boilers, this means you need to make sure you install a powerful enough system to handle your steam needs at peak capacity, as well as have redundancies in place for backup.

Industrial boiler plants typically require a minimum of two units to meet their steam load demand, plus hopefully a third unit for an N+1 redundancy (2+1). This means that two of the units will each share responsibility for powering 50% of the load. Should one of those boilers fail or need to be shut down for maintenance, the redundancy boiler will be ready to take on the offline boiler’s half of the load.

While a 2+1 plant splits the connected load demand 50/50, if you have enough space, you can also increase your number of sections, opting for a 3+1 or 4+1 plant configuration, which splits up the load responsibility to 33% and 25%, respectively. Redistributing the design load size and reducing the size of your plant’s redundant boiler can help you save on equipment costs while maintaining your capacity.

How Efficient is Your “Right-Sized” Boiler Plant?

Even if your boiler system is technically sized to meet your demands at peak capacity, you may end up producing way more steam than you need — especially if you’re using a fire tube boiler in a facility that regularly experiences fluctuating load demands.

In the past, boiler plants were often designed with the maximum steam demand in mind, and decisions were made with the logic that extra capacity was a good thing. Over time, engineers and energy consultants have learned that it’s equally important to consider if and when there may be a partial load demand. For example, you may only need 20-30% of the maximum steam demand during off-peak hours or during certain times of the year. You may also find that your average steam demand is well below the peak demand, meaning that your boiler(s) need to produce only a portion of their maximum steam output for the majority of their useful life.

Why Choose a Modular Boiler System?

A vastly more efficient and cost-effective solution is to choose a modular boiler system, like Miura’s LX and EX industrial boilers. Modular boilers are able to meet highly precise steam load demands, which saves money and energy because you’re never producing more steam than you need.

Modular boiler systems also feature a compact design that allows you to increase your plant’s redundancy while conserving physical space. Miura boilers, in particular, feature a low square-foot, vertical water tube design that eliminates the need for front & rear door-swing space and tube pull-space — features you would normally need to ensure proper maintenance of a traditional fire tube boiler. Plus, whether you’re building a brand new boiler plant or reconfiguring an existing one, the compact footprint of Miura’s modular boiler technology helps you cut down on new construction costs or easily add new units to an existing plant as needed.

Learn More About Miura Modular Boilers

Miura’s modular approach to steam offers the greatest flexibility for satisfying your facility’s minimum and maximum demands — all while still achieving maximum efficiency during partial-load conditions.

Contact a Miura rep in your area or call us at 1-678-685-0929 for more information about how our boilers can reduce your environmental footprint and grow with your company.
